Systems >> Test System
Product imageTypeDescription
dsmc-100akeyvisual01
DSMC-100A
Sampling Moire Camera

Simplified remote XYZ-displacement measurement by using a camera
Minute displacement - including the depth direction of various structures - can be measured at high speeds for multiple points simultaneously with one camera.
Using this product makes it possible to perform remote/contactless monitoring of bridges and other large infrastructure structures.

Features
●Acquisition of displacement information via high-speed imaging (maximum of 500 fps)
●Simultaneous measurement of up to 16 points possible with 1 camera
●Results can be checked immediately after making measurements.
●Support for synchronized measurement using up to 3 cameras
●Measurement using any period is possible.

dsmc-10am1keyvisual02
DSMC-10A M1
Offline Analysis Software		Re-analysis after image capture with various cameras made easy
It is software that can analyze the minute displacement - including the depth direction - of various structures using images taken with digital cameras and high-speed cameras.
spipestresskeyvisual04
Pipe Stress Measuring System

This system is used to measure the stress exerted on pipes due to the vibration of compressors in air conditioners, etc.
The system synchronously measures strain gages, accelerations and records data under the specified conditions.

Features
●Measures the pipe stress of air conditioners, etc.
●Dramatically reduces testing time.
●Sampling frequency: Max. 10 kHz

sshakingtablekeyvisual01
Shaking Table Measuring SoftwareThis software collects measuring data from sensors installed at various measuring points such as acceleration, strain and displacement, and performs data processing.
The PC controls the measuring instruments such as amplifiers, filters and AD converters.
pcas-1000akeyvisual01
PCAS-1000B
PCA Stress Measuring Set		The PCAS-1000A includes software and sensor interface (data logger), specialized for stress measurements described in IPC/JEDEC-9704A**.
It will help beginners to measure PCB (Printed Circuit Board) stress easily.
** Evaluation method for PCA using strain gages is regulated by IPC/ JDEC-9704A and it is valid for quality evaluation or failure analysis.
sdrivingdatakeyvisual01

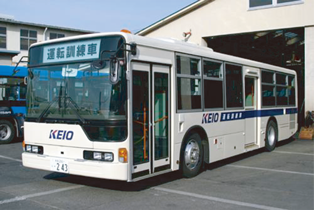

Bus Traveling Data Acquisition System

This system is for acquisition and reproduction of traveling data, such as accelerator opening, engine speed, gear position, jolt, fuel consumption, car-to-car distance, as well as sound and motion of driver’s eyes.
This is the system useful for educating and training bus drivers.

Features
●Visual point measurement function
●Safety check function
●car-to-car distance measurement function
●Left flank distance measurement function
●Jolt measurement function
●Traveling data measurement function
●Fuel consumption measurement function
●Video/sound acquisition function
●real-time monitor function
●Data reproduction function
