| Product image | Type | Description |
 | Easy to use High-stability Measurement The "Handy Scale" portable truck weighing system has been favorably used by automobile-related customers in Japan and abroad. The system enables easy and stable measurement of individual wheel loads, individual axle loads, subtotals of front/rear and left/right wheel and axle loads and the total, which are indispensable for weighing trucks. | |

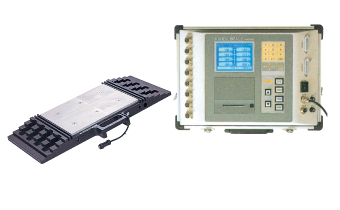

 | RWP-700A Portable Vehicle Weighing System | RWP-700A is a portable system to weigh and manage truck loads. It consists of the detectors that detect the truck weight by weighing the load of each wheel on the platform and the indicator that indicates, records and prints out the weighing result. For measurement, place detectors in parallel on a flat pavement surface, put front wheels on the respective detector platforms at the center and press the MEASURE key. Repeat the same for rear wheels. Pressing the PRINT key prints out the weighing result. Different from a stationary truck scale that weighs a truck with the whole truck body put on the detector, the portable system is allowed to be carried anywhere for measurement not only in factories but also in construction fields where the road surface is solid. |
 | RWP-750A Wireless Portable Vehicle Weighing System | RWP-750A is a wireless portable vehicle weighing system, no connection cable is needed. Being wireless transmitted between the detectors and the indicator, enables to reduce preparation time as well as improving the flexibility of layout. Good-diffraction radio band 920 MHz is used for communication. The antenna is built into detectors, therefore hard to damage even run over by vehicles. |
 | Flat Wheel Detection System | This system can automatically detect abnormal wear on wheel treads, called "flat" on a wheel-by-wheel basis while the train is in motion, and consists of a detector and a data recorder. The detector consists of an accelerometer that detects the impact acceleration caused by "flat", a wheel detector that detects the passing of a wheel, and an antenna that receives radio waves to identify the car number. |
 | Heat Detection System | The heat detection system enables preventive maintenance of vehicle equipment and early detection of train fire hazard/axle box overheating. |
 | Wheel Load Measuring System | The wheel load measuring system can measure wheel loads of rolling stock conveniently. |
 | DSMC-100A Sampling Moire Camera | Simplified remote XYZ-displacement measurement by using a camera Features ●Acquisition of displacement information via high-speed imaging (maximum of 500 fps)●Simultaneous measurement of up to 16 points possible with 1 camera ●Results can be checked immediately after making measurements. ●Support for synchronized measurement using up to 3 cameras ●Measurement using any period is possible. |
 | DSMC-10A M1 Offline Analysis Software | Re-analysis after image capture with various cameras made easy ● Displacement measurement based on commercially available camera images (BMP) ● Measurement of up to 24 areas ● Output of analysis results to CSV files |
 | Pipe Stress Measuring System | This system is used to measure the stress exerted on pipes due to the vibration of compressors in air conditioners, etc. ●Measures the pipe stress of air conditioners, etc. ●Dramatically reduces testing time. ●Sampling frequency: Max. 10 kHz |
 | Shaking Table Measuring Software | This software collects measuring data from sensors installed at various measuring points such as acceleration, strain and displacement, and performs data processing. The PC controls the measuring instruments such as amplifiers, filters and AD converters. |
 | PCAS-1000A PCA Stress Measuring Set | The PCAS-1000A includes software and sensor interface (data logger), specialized for stress measurements described in IPC/JEDEC-9704A**. It will help beginners to measure PCB (Printed Circuit Board) stress easily. ** Evaluation method for PCA using strain gages is regulated by IPC/ JDEC-9704A and it is valid for quality evaluation or failure analysis. |

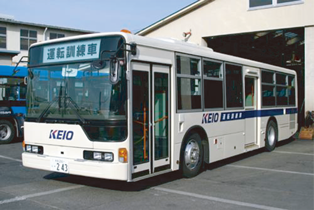

 | Bus Traveling Data Acquisition System | This system is for acquisition and reproduction of traveling data, such as accelerator opening, engine speed, gear position, jolt, fuel consumption, car-to-car distance, as well as sound and motion of driver’s eyes. ●Visual point measurement function ●Safety check function ●car-to-car distance measurement function ●Left flank distance measurement function ●Jolt measurement function ●Traveling data measurement function ●Fuel consumption measurement function ●Video/sound acquisition function ●real-time monitor function ●Data reproduction function |
 | DCS-100A Dynamic Data Acquisition Software | Monitors measurement data with various graphs and numerical windows. Acquires data efficiently. The software enables easy interactive setting of various conditions and facilitates efficient acquisition of required data by showing variables under measurement in graphs and numeric windows on the display. Measuring instruments are CTRS-100 series, EDX-10 series, EDX-200A, EDX-5000A, PCD-400B series, UCAM-550A, and NTB-500C. |
 | DAS-200A Data Analysis Software | The Data Analysis Software DAS-200A enables data reproduction and analysis of data. The DAS-200A displays Kyowa standard files (KS1, KS2, KS3) on graphs, in numerical values and analyzes them. |
 | PCAS-100A PCA Stress Measuring Software | Combination with the PCD-400B or PCD-430B, the PCA Stress Measuring Software PCAS-100A is the dedicated software to test stress of PCA. The PCAS-100A allows a beginner to test a PCA stress, analyze data, and create reports in accordance with IPC/JEDEC-9704A** . ** Evaluation method for PCA using strain gages is regulated by IPC/JEDEC-9704A and it is valid for quality evaluation or failure analysis. |
 | PCAS-200A PCA Stress Analysis Software | The PCAS-200A is the dedicated software for the KS2 files, recorded by our measuring instruments. The PCAS-200A calculates the max. principal strain, min. principal strain, diagonal strain, strain rate and creates graphs and tables easily. Others, compare with PCAS-100A, the PCAS-200A has more report types and file processing functions. * Evaluation method for printed circuit assembly using strain gages is regulated by IPC/JDEC-9704A and it is valid for quality evaluation or failure analysis. |
 | UCS-80A Control Software | The UCS-80A enables the PC to control a data logger and to present measured/calculated data on graph and numeric windows, thereby enhancing the performance of the data logger. |
 | UCS-60B Control Software | The UCS-60B enables the PC to control a data logger and to present measured/calculated data on graph and numeric windows, thereby enhancing the performance of the data logger. |
 | SPIRAS Multi-purpose Dynamic Data Acquisition/Processing Software | Enable high-speed dynamic data acquisition in 8 to 128 channels The software is designed to record and process dynamic variables of strain, pressure, acceleration and displacement. During data acquisition by sampling at a maximum 100 kHz, the software enables users to monitor the data in waveforms, X-Y graphs and numerics. If the sampling rate is 2 kHz or lower, frequency analysis result too can be monitored. (In any case, a sampling rate exceeding 2 kHz thins out graphs.) In data processing, calculation between channels, digital filtering and statistic processing are available while frequency analysis and histogram analysis are optional. Furthermore, if a movie was taken during data acquisition, it can be reviewed in synchronization with graphic and numeric data. The software is applicable to EDX-100A as standard but can be made applicable to UCAM-550A according to user’s needs. In addition, we can offer versions for simultaneous measurement of static and dynamic data, etc. as desired. |
 | KSV-100A Software for reading/displaying KS2 file data | Free Edition for showing KS2 file data. KS2 file is the Kyowa Standard format file. |
