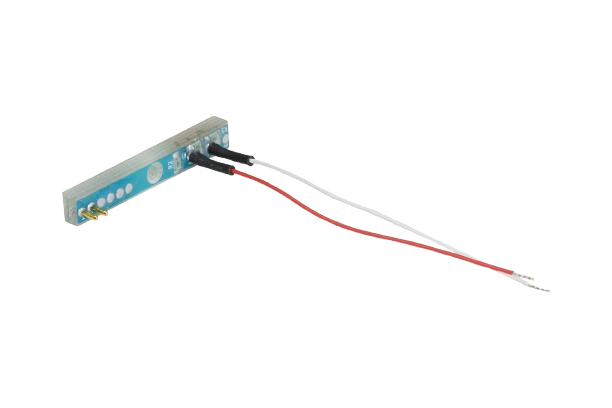

Bridge adapter for the MRS-100 Series transmitter.

For 120Ω gage

For 120Ω gage
Clamp-type one-touch terminals

For 120Ω gage
Compact plug-in type

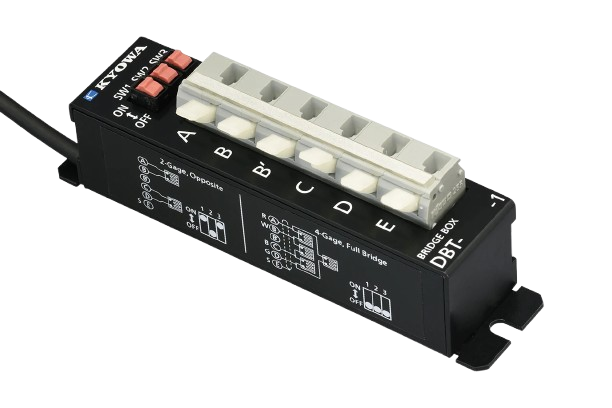

DBT-A-1

Bridge Box

For 1 channel measurement

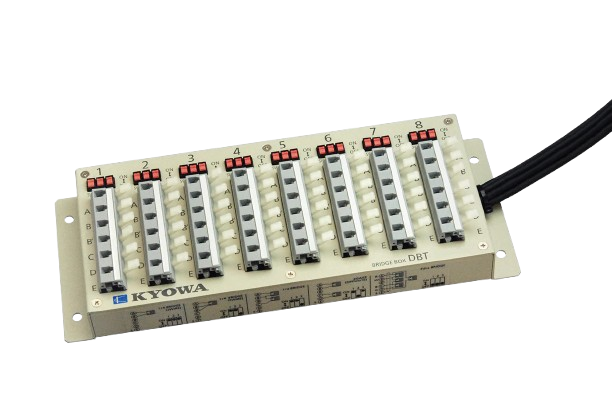

DBT-A-8

Bridge Box

Clamp type one-touch terminal

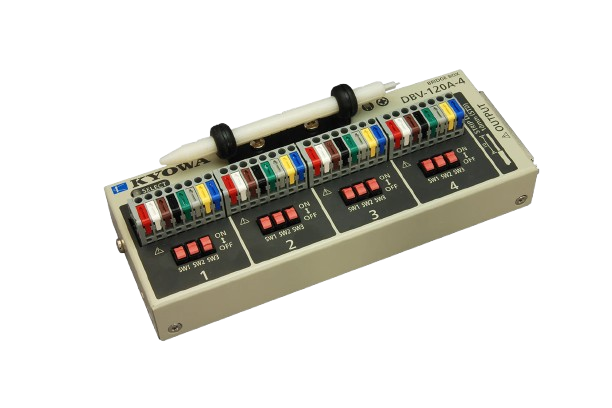

DBV-A-4

One-touch Type Bridge Box

One-touch terminal block for      4-channel measurement

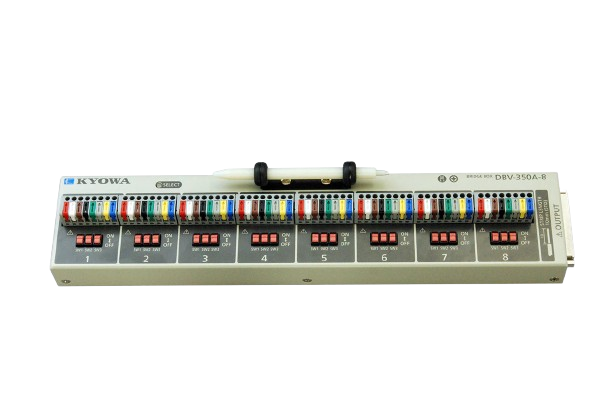

DBV-A-8

One-touch Type Bridge Box

One-touch terminal block for      8-channel measurement

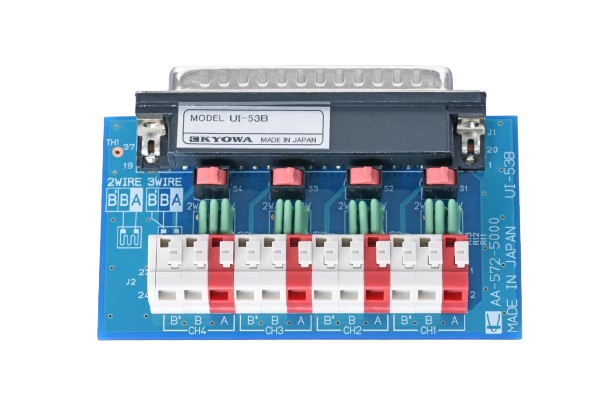

UI-53B

Bridge Adapter for Quarter Bridge System

This is the strain gage input adapter for the EDX-10 Series.

The compatible strain gage connection method is the 1-gage method.

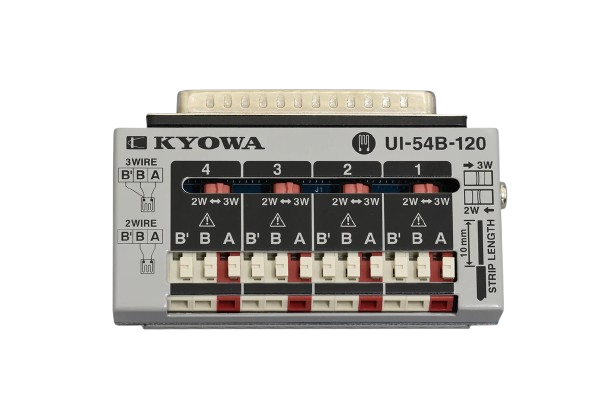

UI-54B

Bridge Adapter for Quarter Bridge System

This is the strain gage input adapter for the EDX-10 Series.

The compatible strain gage connection method is the 1-gage method.
